The Novopress ACO103 Cordless Pressing Tool Kit (497788062-50001-50869-50) is a compact, lightweight, high-performance press tool bundle for professionals in plumbing, heating, and air conditioning. Built for speed and reliability, the ACO103 delivers a powerful 19 kN pressing force while weighing only 1.6 kg, making it ideal for confident one-handed operation, even in confined spaces.

Powered by the Milwaukee® M12™ lithium-ion battery platform, the ACO103 provides dependable runtime with up to 250 crimps per charge. A rotatable head improves access and positioning, while the ergonomic 2K housing ensures comfort and control. LED status indicators show battery level and tool readiness, and pressing force monitoring with redundant power cut-off ensures safe, consistent results on every press. Extra site-ready features include an electric retaining bolt lock, integrated work light, and Bluetooth® connectivity for performance monitoring and alerts via the NovoCheck app.

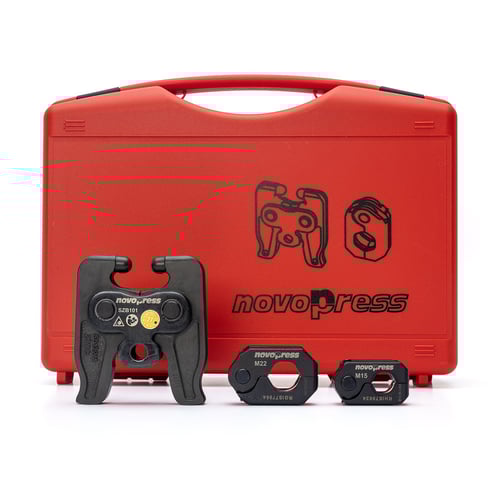

This kit also includes the Novopress Angled Jaw Set, designed specifically for difficult access points. With a 180° swivel mechanism, these angled slings allow multi-angle pressing in tight spaces such as exposed pipe chases, shafts, and opened walls. The set includes the SZB101 adaptor and common M-profile copper sizes, giving you a ready-to-go solution for awkward installs.

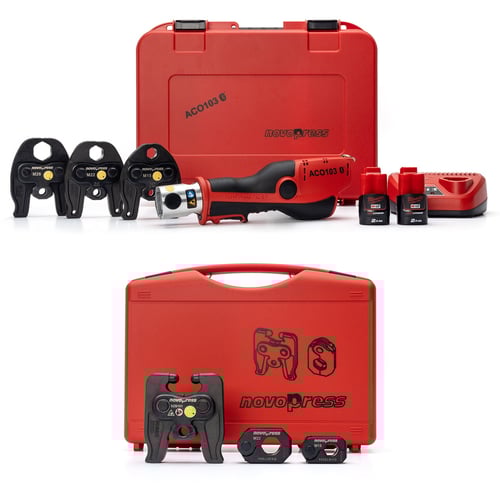

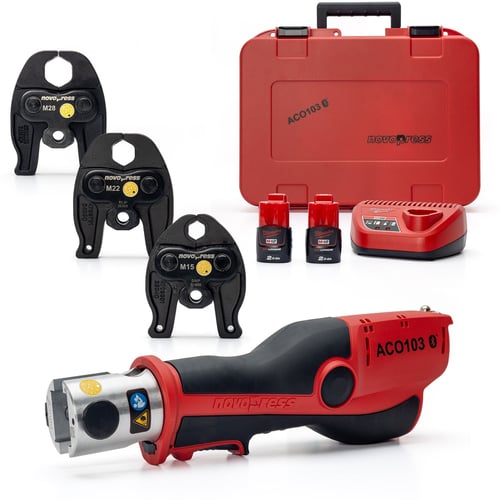

Supplied with:

• Novopress ACO103 Cordless Press Tool

• 3x M Profile Pressing Jaws

• 2x 2.0Ah Milwaukee® M12™ Batteries

• Battery Charger

• Hard Carry Case

• Angled Jaw Set Kit Box

• M15 Angled Sling (M Profile)

• M22 Angled Sling (M Profile)

• SZB101 Adaptor

Key Features:

• Rotatable head for pressing in confined areas

• Ultra-lightweight 1.6 kg for comfortable one-handed use

• Milwaukee® M12™ battery system – up to 250 crimps per charge

• LED indicators for battery and tool status

• Pressing force monitoring with redundant cut-off for safety

• Electric retaining bolt lock for secure jaw fitting

• Integrated work light for low-light pressing

• Bluetooth® + NovoCheck app support

• Press capacity: metal pipes up to 35mm, plastic/composite up to 40mm

• Angled jaw set with 180° swivel for multi-angle pressing in tight spaces

• Angled jaws compatible with Novopress ACO102/ACO103, Rothenberger Compact TT, Milwaukee M12 and other 12V press tools

Technical Specifications (ACO103):

• Nominal widths: metal up to 35mm, plastic/composite up to 40mm

• Pressing force: 19 kN

• Piston stroke: 30 mm

• Power absorbed: 240 W

• Dimensions: 320 × 98 × 72 mm

• Weight: 1.6 kg

• Battery system: Milwaukee® M12™ Li-Ion

• Charging time: 45–75 minutes

• Runtime: up to 250 crimps per charge
